Design and manufacturing development of modular railway-station seating
Development of robust seating suitable for public environments
Entify Solutions supported the design and development of a bespoke seating system intended for use within railway stations.
The design needed to combine strength, durability and a clean appearance while remaining practical to fabricate and assemble.

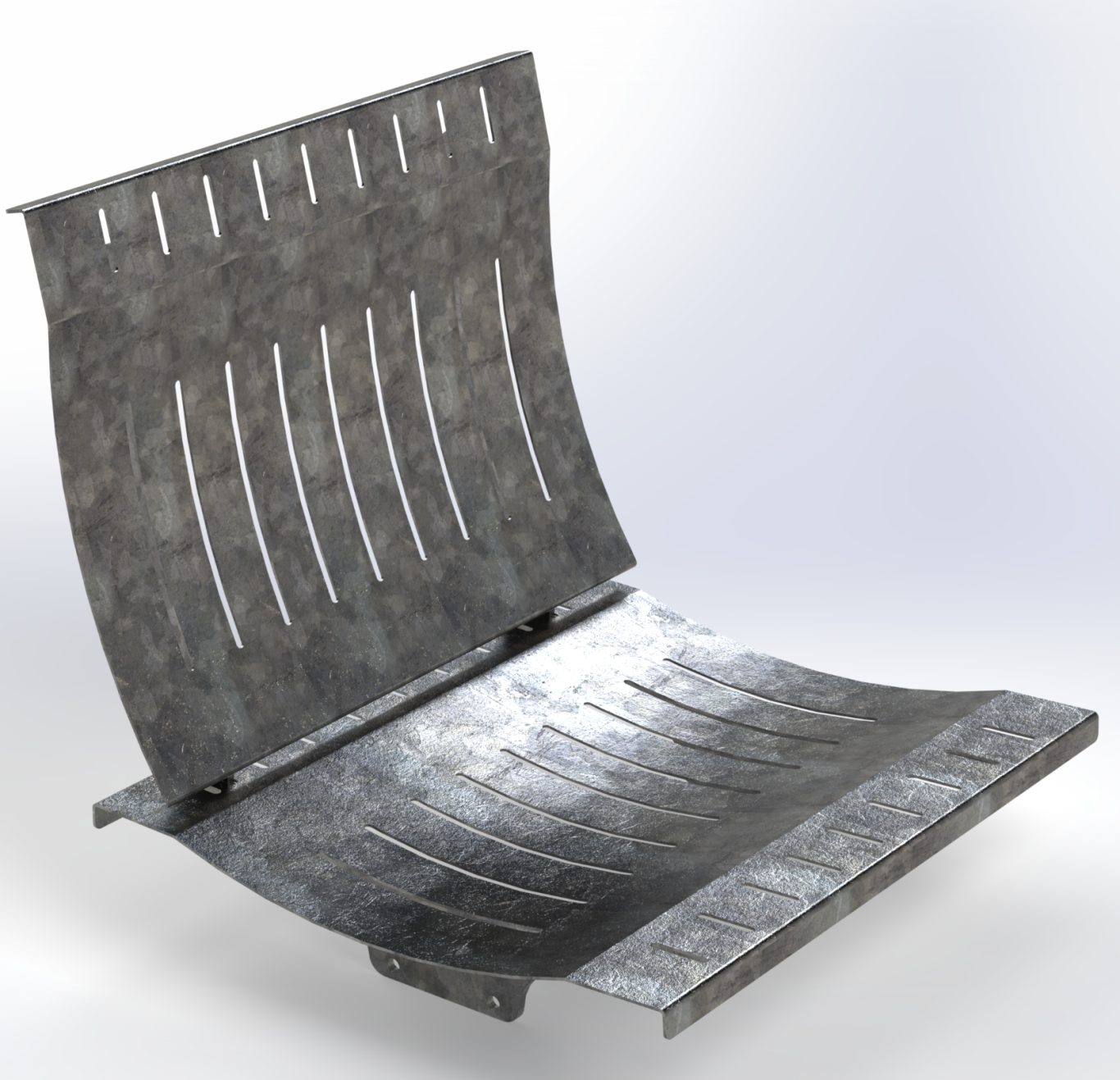

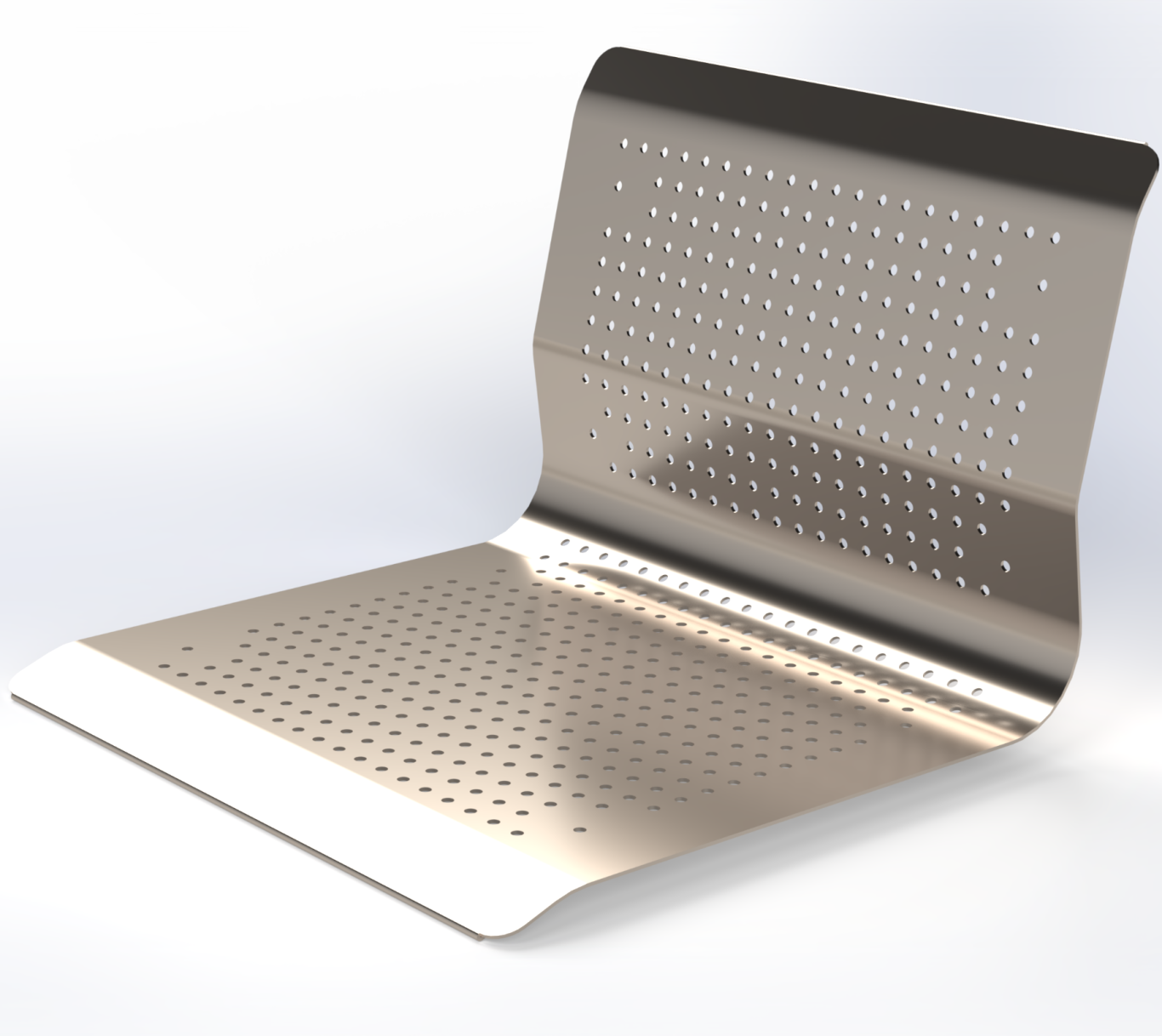

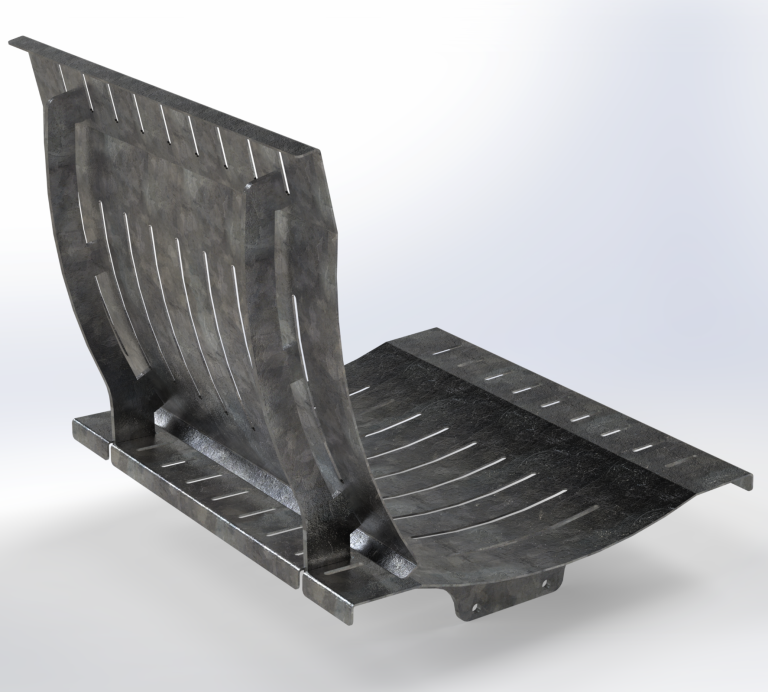

The seating assembly was developed in 3D CAD, allowing the proportions, support structure and individual components to be reviewed before manufacturing information was prepared.
Scope of work
- Concept development
- 3D CAD modelling
- Sheet-metal and fabricated component design
- Assembly development
- Manufacturing drawings
- Product visualisation
The outcome
The final design provided a clear basis for manufacture, helping the client review the appearance and construction of the seating before committing to fabrication.
Modular Maintenance Platform
A configurable access platform designed for different installation layouts

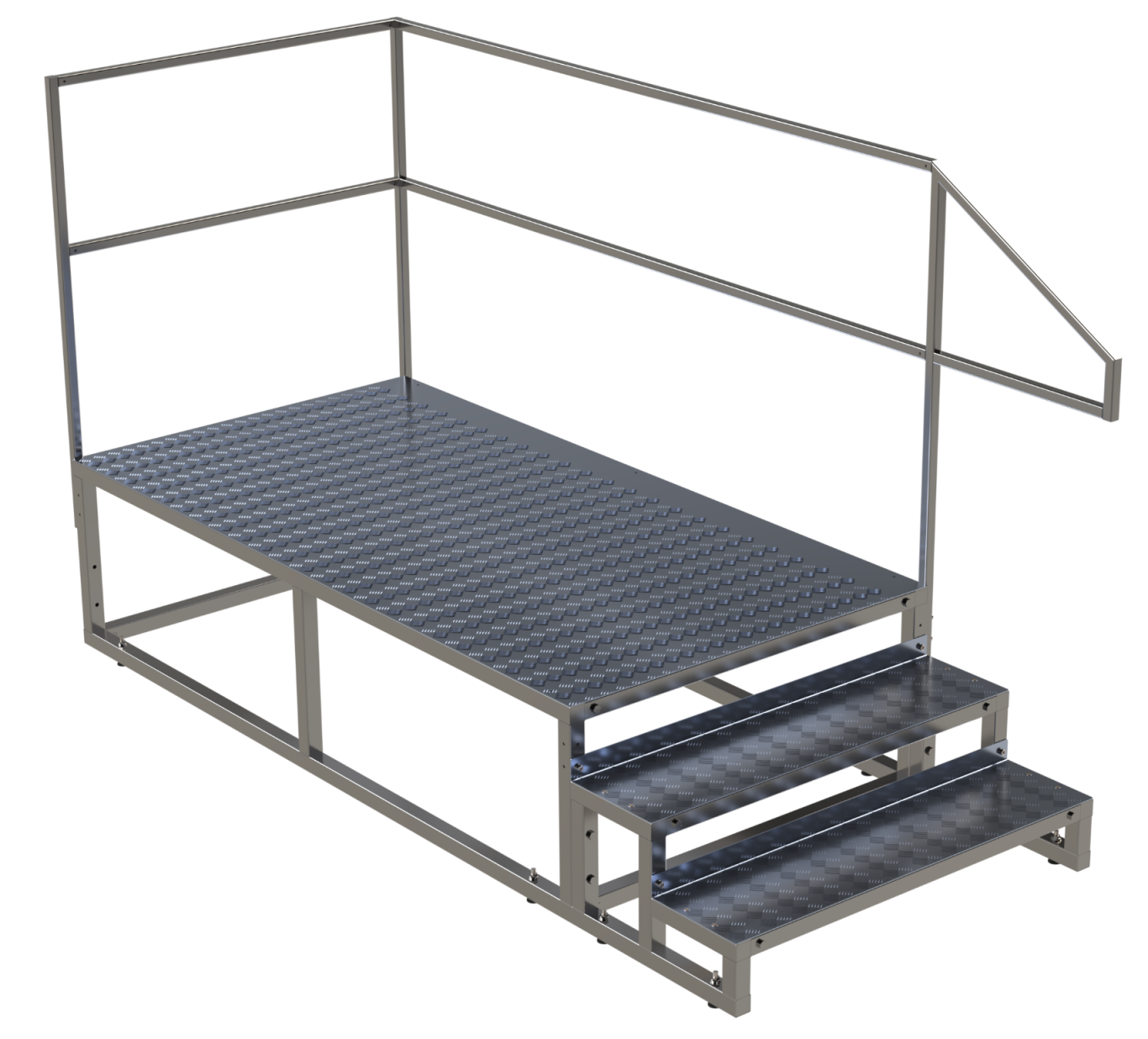

The client required a modular maintenance platform that could be configured to suit different access arrangements while using a common set of components.
Entify Solutions developed the complete 3D CAD assembly, refined the structural layout and produced detailed manufacturing drawings for fabrication.
Particular attention was given to ensuring the platform could be assembled in alternative orientations without creating unnecessary unique components.
Scope of work
- 3D CAD modelling
- Assembly development
- Design for manufacture
- Fabrication drawings
- Component and assembly drawings
- Design revisions and production support
The outcome
The completed design provided the client with a flexible, manufacture-ready platform system that could be adapted to different installation requirements while keeping fabrication and assembly straightforward.
Bespoke sheet-metal chandelier enclosure
A custom enclosure developed around an existing installation

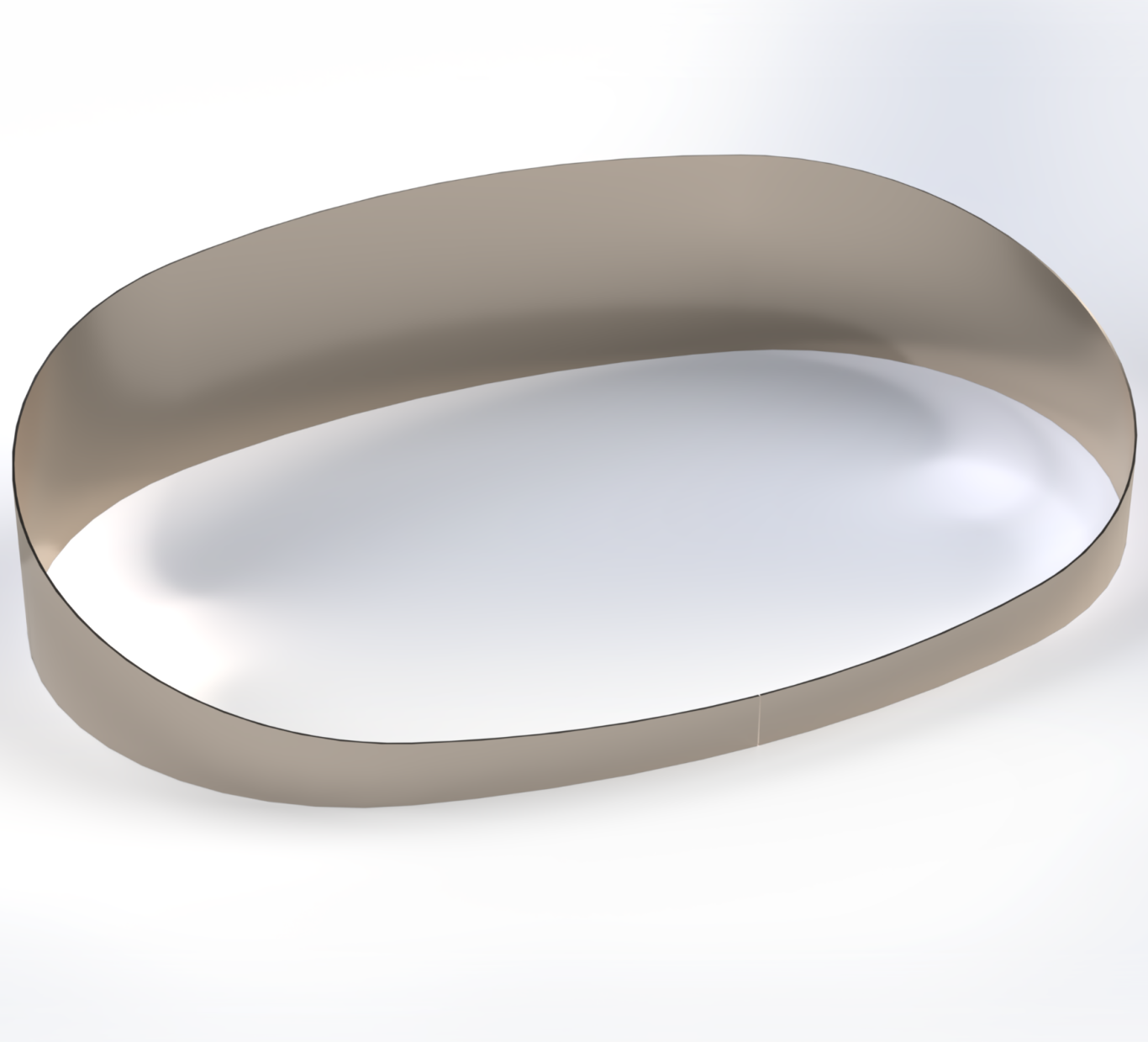

The client required a bespoke cover to improve the appearance of an existing chandelier installation while accommodating the surrounding structure and fixing requirements.
Entify Solutions developed the enclosure in 3D CAD and considered how the cover would be manufactured, assembled and installed.
The design was refined to create a clean finished appearance while remaining practical for the fabricator to produce.
Scope of work
- Site and design information review
- 3D CAD modelling
- Sheet-metal design
- Design for manufacture
- Manufacturing drawings
- Rendered visualisation
The outcome
The finished design gave the client and fabricator a clear visual representation of the proposed cover together with the information required to manufacture it.
